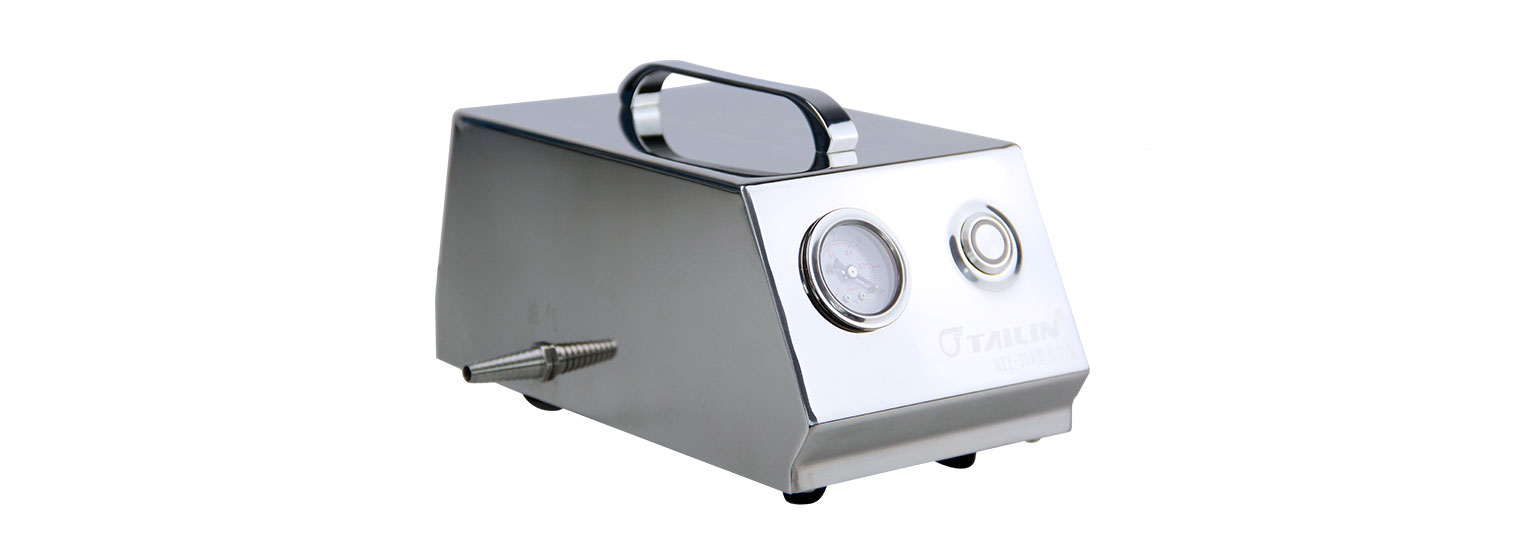

The HTY-30B diaphragm pump is designed for laboratory purpose.When using together with microbial test manifod and filtration funnel, it could realize fast suction filtering.
Vauum pump should use the filter flask for suction filtration;
Small size, suitable for use in laminar flow hood;
Low noise;
Easy to clean and disinfection.
Power supply: AC 220V/50Hz
Power consumption: 30W
Pumping flow: ≥25L/min. (air flow)
Drainage silicone tube: inner diameter is Φ7mm～Φ9mm
Noise: ≤65dB(A) (load condition)
Vacuity: 30KPa (Absolute pressure); - 70KPa (Relative pressure)
Net Weight: 3.0kgs
Dimensions: 14.0cm x 25.0cm x 11.0cm
Laboratory suction filtration.

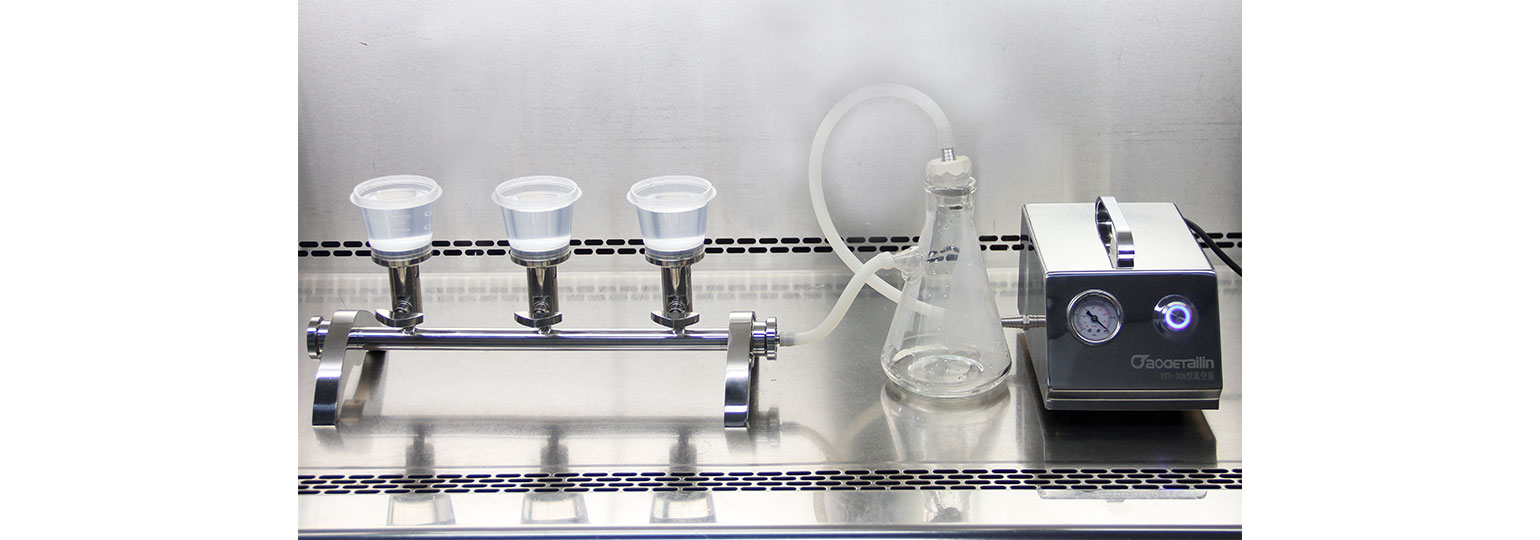

Used together with manifold, filtration funnel and filtration membrane.
Technical specifications are subject to change without notice. Copyright reserved by Tailin.
