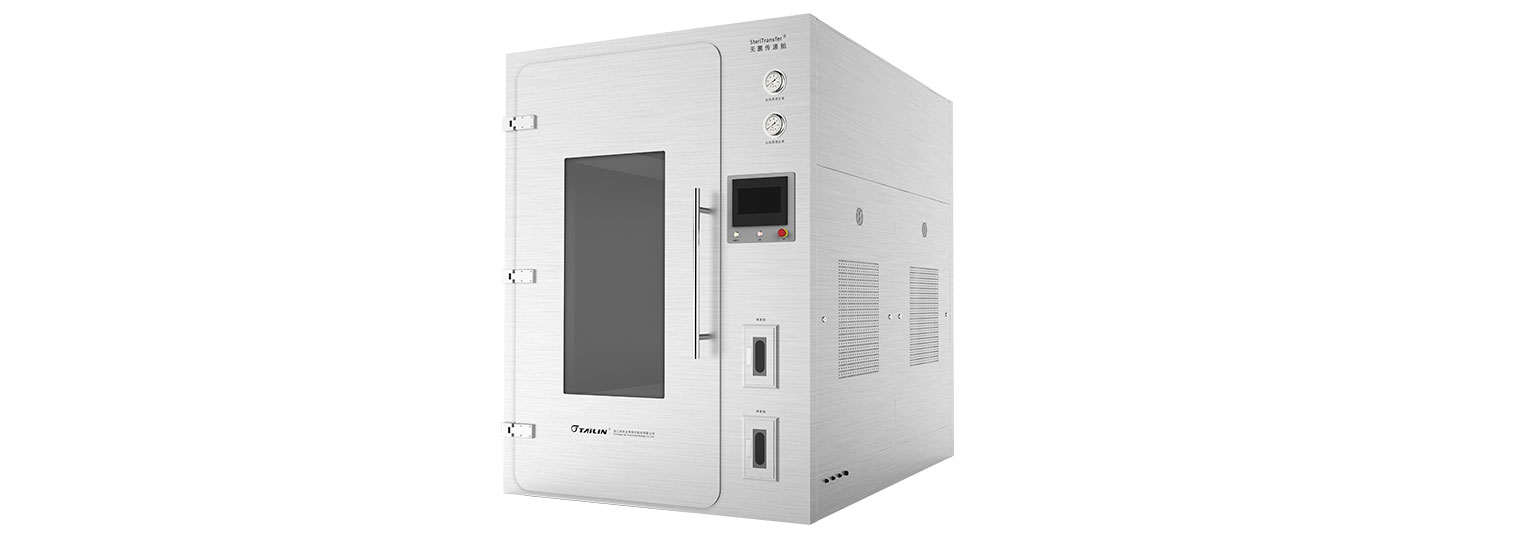

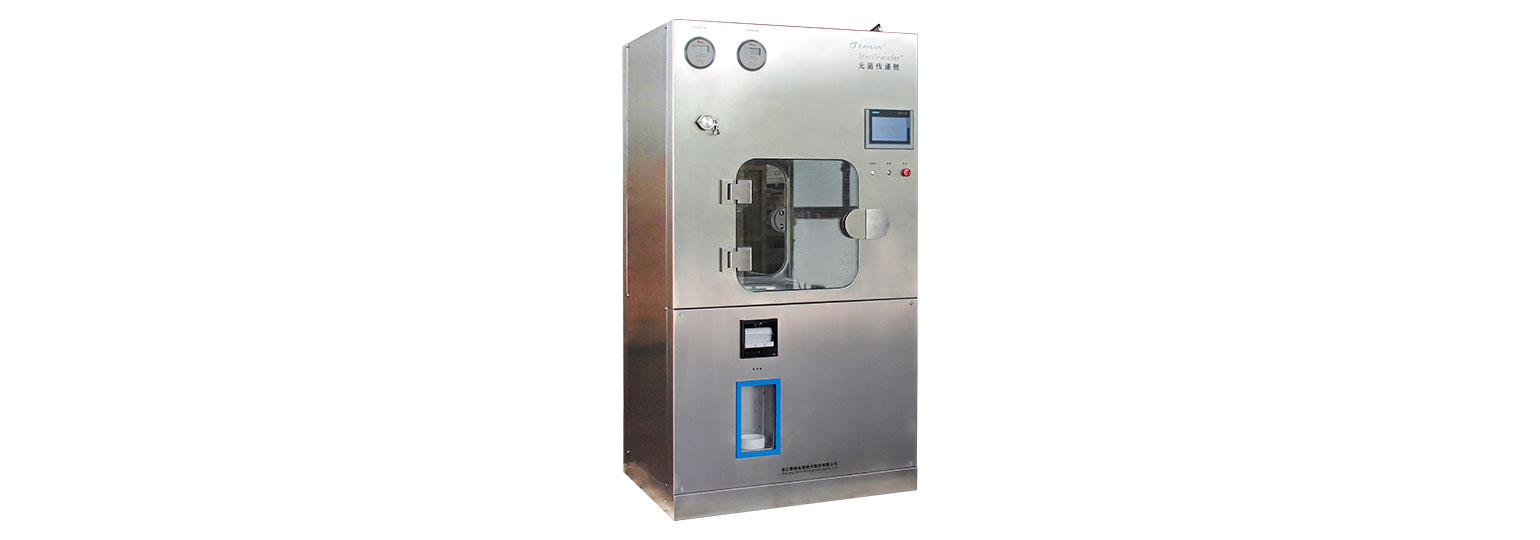

FPB series of Dry Fog Pass Box adopts the H2O2 atomization technology for fast bio-decontamination.
Built-in H2O2 dry fog system.
Fast cycle time.
Gas seal and Interlock doors.
Leak rate is less than 0.5%/vol/hour.
Total kill of a 106 population of G. stearothermophilus validated by biological indicators.
Horizontal unidirectional flow.
H14 HEPA filters for air intake and exhaust
Surfaces contact to the H2O2: SUS316L
Exhaust outlet: DN100
Dry Fog inlet: DN32
Data storage, audit trail, alarm logs exported and real time printing.
Real time monitoring the temperature, humidity and pressure.
Comply to 21CFR Part 11.
Laminar flow.
H2O2 high & low concentration sensors
H2O2 portable sensor for operator safety
| Model | FPB125 | FPB400 | FPB600 | FPB1000 | FPB1500 |
|---|---|---|---|---|---|
| Overall Size (LxDxH) mm | 1000*884*1790 | 1200*884*2080 | 1515*1100*1640 | 1515*1100*1840 | 1795*1200*1800 |
| Inner Chamber (LxDxH) mm | 500*700*500 | 700*700*800 | 800*1000*1000 | 800*1000*1200 | 1100*1100*1200 |
*Size can be customized
Transfer materials from low grade area to high grade area.
Materials cannot be heat/steam sterilized.
Technical specifications are subject to change without notice. Copyright reserved by Tailin.
